This document explains the inner workings of a program that demodulates Franke and Taylor's FT8 digital mode. I hope the explanation helps others write their own home-brew FT8 software, perhaps using this code as a starting point. You can find the program's Python source code at https://github.com/rtmrtmrtmrtm/basicft8.
An FT8 cycle starts every 15 seconds, at 0, 15, 30 and 45 seconds past the minute. An FT8 signal starts 0.5 seconds into a cycle and lasts 12.64 seconds. It consists of 79 symbols, each 0.16 seconds long. Each symbol is a single steady tone. For any given signal there are eight possible tones (i.e. it is 8-FSK). The tone spacing is 6.25 Hertz.
To help receivers detect the presence of signals and to estimate where they start in time and in frequency, there are three sequences of seven fixed tones embedded in each signal. Each fixed sequence is called a Costas synchronization array, and consists of the tone sequence 2, 5, 6, 0, 4, 1, and 3.
The other 58 symbols carry information. Each symbol conveys 3 bits (since it's 8-FSK), yielding 174 bits. The 174 bits are a "codeword", which must be given to a Low Density Parity Check (LDPC) decoder to yield 87 bits. The LDPC decoder uses the extra bits to correct bits corrupted by noise, interference, fading, etc. The 87 bits consists of 75 bits of "packed message" plus a 12-bit Cyclic Redundancy Check (CRC). The CRC is an extra check to verify that the output of the LDPC decoder really is a proper message.
The 75-bit packed message can have one of a few formats. The most common format is two call signs (each packed into 28 bits) and either a signal strength report or a grid square (packed into 16 bits).
This demodulator uses upper-side-band audio from a receiver, so it sees a roughly 2500-Hz slice of spectrum. An FT8 signal is 50 Hz wide (8 tones times 6.25 Hz per tone), and there may be many signals in the audio. The demodulator does not initially know the frequencies of any of them, so it must search in the 2500 Hz. While most signals start roughly 0.5 seconds into a cycle, differences in clock settings mean that the demodulator must search in time as well as frequency.

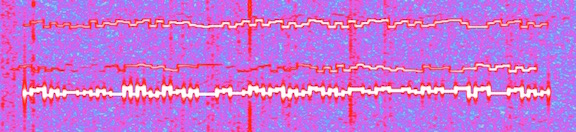

To illustrate, here is a spectrogram from an FT8 cycle. Time progresses along the x-axis, starting at the beginning of a cycle, and ending about 13.5 seconds later. The y-axis shows a slice of about 800 Hz. Three signals are visible; the middle signal starts a little early. Each signal visibly shifts frequency as it progresses from one 8-FSK symbol to the next. With a bit of imagination you can see that the signals have identical first and last runs of seven symbols; these are the Costas arrays.
Here's a summary of the stages in which an FT8 sender constructs a signal, along with the size of each stage's output.
This demodulator looks at an entire FT8 cycle's worth of audio samples at a time. It views the audio as a two-dimensional matrix of "bins", with frequency in 6.25-Hz units along one axis, and time in 0.16-second symbol-times along the other axis. Much like the spectrogram image above. Each bin corresponds to a single tone lasting for one symbol time. Each bin's value indicates how much signal energy was received at the corresponding frequency and time. This arrangement is convenient because, roughly speaking, one can demodulate 8-FSK by seeing which of the relevant 8 bins is strongest during each symbol time. The demodulator searches for Costas synchronization arrays in this matrix. For each plausible-looking triplet of Costas arrays at the same base frequency and with the right spacing in time, the demodulator extracts bits from FSK symbols and sees if the LDPC decoder can interpret the bits as a correct codeword. If the LDPC succeeds, and the CRC is correct, the demodulator unpacks the message and prints it.
The demodulator requires an audio sample rate of 12000 samples/second. It turns the audio into bins by repeated use of Fast Fourier Transforms (FFTs), one per symbol time. A symbol time is 1920 samples. Each FFT takes 1920 audio samples and returns (1920/2)+1 output bins, each containing the strength of a different frequency within those audio samples. The FFT output bins correspond to frequencies at multiples of 12000/1920, or 6.25 Hz, which is the FT8 tone spacing. Thus the demodulator forms its matrix of bins by handing the audio samples, 1920 at a time, to FFTs, and stacking the results to form a matrix.
This program catches only a fraction of the FT8 signals that wsjt-x can decode. Perhaps the most serious deficiency is that the program only works well for signals that arrive aligned near 1920-sample boundaries in time, and near 6.25-Hz boundaries in frequency. It would be more clever to look for signals on half- or quarter-bin boundaries, in time and in frequency.
With preliminaries out of the way, here is the demodulator code.
These imports tell python which modules to include. Numpy provides FFTs and convenient array manipulation. pyaudio provides access to sound cards.
import numpy import pyaudio import wave import sys import time import re import threading class FT8:The process() function demodulates one FT8 cycle. It is called with 13.64 seconds of audio at 12,000 samples/second: samples is a numpy array with about 164,000 elements. 13.64 seconds is enough samples for a whole signal (12.64 seconds) plus half a second of slop at the start and end. process() computes for at most ten seconds so that it doesn't overlap with the call for the next 15-second FT8 cycle; the call to time.time() records the starting wall-clock time in seconds.
def process(self, samples):
t0 = time.time()
How many symbols does samples hold? // is Python's integer division.
self.block is 1920, the number of samples in one FT8 symbol.
nblocks = len(samples) // self.block
Perform one FFT for each symbol-time's worth of samples.
Each FFT returns an array with nbins elements. The matrix m
will hold the results; m[i][j] holds the strength of
frequency j*6.25 Hz during the i'th symbol-time.
The FFT returns complex numbers that indicate
phase as well as amplitude; the abs() essentially throws away
the phase.
nbins = (self.block // 2) + 1
m = numpy.zeros((nblocks, nbins))
for i in range(0, nblocks):
block = samples[i*self.block:(i+1)*self.block]
bins = numpy.fft.rfft(block)
bins = abs(bins)
m[i] = bins
Much of this code deals with arrays of numbers. Thus block
above holds the 1920 samples of a single symbol time, bins
holds the (1920/2)+1 FFT result elements, and the final
assignment copies bins to a slice through the m matrix.
Next the code will look for Costas arrays in m. A Costas array in m looks like a 7x8 sub-matrix with one high-valued element in each column, and the other elements with low values. The high-valued elements correspond to the i'th tone of the Costas array. We'll find Costas arrays in m using exhaustive matrix multiplications of sub-matrices of m with a Costas template matrix that has a 1 in each element that should be high-valued, and a -1/7 in each other element. The sum over the product's elements will be large if we've found a real Costas sync array, and close to zero otherwise. The reason to use -1/7 rather than -1 is to avoid having the results dominated by the sum of the large number of elements that should be low-valued.
costas_matrix = numpy.ones((7, 8)) * (-1 / 7.0)
costas_symbols = [ 2, 5, 6, 0, 4, 1, 3 ]
for i in range(0, len(costas_symbols)):
costas_matrix[i][costas_symbols[i]] = 1
Now examine every symbol-time and FFT frequency bin at which
a signal could start (there are a few thousand of them). The
signal variable holds the 79x8 matrix for one signal. Sum
the strengths of the Costas arrays for that potential
signal, and append the strength to the candidates array.
candidates will end up holding the likelihood of there being
an FT8 signal for every possible starting position.
candidates = [ ]
for bi in range(0, nbins-8):
for si in range(0, nblocks - 79):
signal = m[si:si+79,bi:bi+8]
strength = 0.0
strength += numpy.sum(signal[0:7,0:8] * costas_matrix)
strength += numpy.sum(signal[36:43,0:8] * costas_matrix)
strength += numpy.sum(signal[72:79,0:8] * costas_matrix)
candidates.append( [ bi, si, strength ] )
Sort the candidate signals, strongest first.
candidates = sorted(candidates, key = lambda e : -e[2])
Now we'll look at the candidate start positions, strongest
first, and see if the LDPC decoder can extract a signal from
each of them. This is the second pass in a two-pass scheme:
the first pass is the code above that looks
for plausible Costas sync arrays, and the second pass is the
code below that tries LDPC
decoding on the strongest candidates. Why two
passes, rather than simply trying LDPC decoding at
each possible signal start position? Because LDPC decoding
takes a lot of CPU time, and in our 10-second budget there's
only enough time to try it on a modest number of candidates.
The Costas sync detection above, however, is cheap enough
that it's no problem to do it for every possible signal
start position. The result is that we only try expensive
LDPC decoding for start positions that have a good chance of
actually being signals.
The assignment to signal extracts the 79x8 bins that correspond to this candidate signal. signal[3][4] contains the strength of the 4th FSK tone in symbol 3. If it is the highest among the 8 elements of signal[3], then symbol 3's value is probably 4 (yielding the three bits 100). The call to process1() does most of the remaining work (see below). This loop quits after 10 seconds.
for cc in candidates:
if time.time() - t0 >= 10:
break
bi = cc[0]
si = cc[1]
signal = m[si:si+79,bi:bi+8]
msg = self.process1(signal)
if msg != None:
bin_hz = self.rate / float(self.block)
hz = bi * bin_hz
print("%6.1f %s" % (hz, msg))
fsk_bits() is a helper function that turns a 58x8 array of tone
strengths into 58*3 bits. It does this by deciding which tone is
strongest for each of the 58 symbols. s58 holds, for each symbol, the index of the
strongest tone at that symbol time. bits3 generates each symbol's three bits, and
numpy.concatenate() flattens them into 174 bits.
def fsk_bits(self, m58):
s58 = [ numpy.argmax(x) for x in m58 ]
bits3 = [ [ (x>>2)&1, (x>>1)&1, x&1 ] for x in s58 ]
a174 = numpy.concatenate(bits3)
return a174
process() calls process1() for each candidate signal.
m79[0..79][0..8] holds the eight tone strengths for each received
symbol.
def process1(self, m79):
Drop the three 7-symbol Costas arrays.
m58 = numpy.concatenate( [ m79[7:36], m79[43:72] ] )
Demodulate the 58 8-FSK symbols into 174 bits.
a174 = self.fsk_bits(m58)
The LDPC decoder wants log-likelihood estimates, indicating
how sure we are of each bit's value. This code isn't clever
enough to produce estimates, so it fakes them. 4.6 indicates
a zero, and -4.6 indicates a one.
two = numpy.array([ 4.6, -4.6 ], dtype=numpy.int32)
log174 = two[a174]
Call the LDPC decoder with the 174-bit codeword. The
decoder has a big set of parity formulas that must be
satisfied by the bits in the codeword. Usually the codeword
contains errored bits, due to noise, interference, fading,
and badly aligned symbol sampling. The decoder tries to
guess which bits are incorrect, and flips them in an attempt
to cause the parity formulas to be satisfied.
If it succeeds, it returns 87 bits containing
the original message (the bits the sender handed its LDPC encoder).
Otherwise, after flipping
different combinations of bits for a while, it gives up.
a87 = ldpc_decode(log174)
A zero-length result array indicates that the decoder failed.
if len(a87) == 0:
return None
The LDPC decode succeeded! FT8 double-checks the result with
a CRC. The CRC rarely fails if the LDPC
decode succeeded.
cksum = crc(numpy.append(a87[0:72], numpy.zeros(4, dtype=numpy.int32)),
crc12poly)
if numpy.array_equal(cksum, a87[-12:]) == False:
return None
The CRC succeeded, so it's highly likely that a87 contains
a correct message. Drop the 12 CRC bits and unpack the remainder into
a human-readable message, which process() will print.
a72 = a87[0:72]
msg = self.unpack(a72)
return msg
That's the end of the guts of the FT8 demodulator!
The remaining code is either not really part of demodulation (e.g. the FT8 message format unpacker), or it's fairly generic (the sound card and .wav file readers, and the LDPC decoder).
Open the default sound card for input.
def opencard(self):
self.rate = 12000
self.pya = pyaudio.PyAudio()
self.card = self.pya.open(format=pyaudio.paInt16,
channels=1,
rate=self.rate,
output=False,
input=True)
gocard() reads samples from the sound card. Each time it
accumulates a full FT8 cycle's worth of samples,
starting at a cycle boundary, it passes them
to process(). gocard() calls process() in a separate thread,
because it needs to read samples for the next cycle while
process() is decoding.
def gocard(self):
buffered = numpy.array([], dtype=numpy.int16)
while True:
chunk = self.card.read(1024)
chunk = numpy.fromstring(chunk, dtype=numpy.int16)
buffered = numpy.append(buffered, chunk)
sec = self.second()
if sec >= 13.64 and len(buffered) > 13.64 * self.rate:
start = len(buffered) - int(sec * self.rate)
if start < 0:
start = 0
samples = buffered[start:]
th = threading.Thread(target=lambda s=samples: self.process(samples))
th.daemon = True
th.start()
buffered = numpy.array([], dtype=numpy.int16)
second() returns the number of seconds since the start of the
current 15-second FT8 cycle.
def second(self):
t = time.time()
dt = t - self.start_time
dt /= 15.0
return 15.0 * (dt - int(dt))
This program can read a .wav file instead of a sound card. The
.wav file must contain one FT8 cycle at 12000 samples/second.
That is the format that wsjt-x produces when it records audio.
def openwav(self, filename):
self.wav = wave.open(filename)
self.rate = self.wav.getframerate()
assert self.rate == 12000
assert self.wav.getnchannels() == 1
assert self.wav.getsampwidth() == 2
def readwav(self, chan):
frames = self.wav.readframes(8192)
samples = numpy.fromstring(frames, numpy.int16)
return samples
def gowav(self, filename, chan):
self.openwav(filename)
bufbuf = [ ]
while True:
buf = self.readwav(chan)
if buf.size < 1:
break
bufbuf.append(buf)
samples = numpy.concatenate(bufbuf)
self.process(samples)
This code unpacks FT8 messages into human-readable
form. At a high level it interprets 72 bits of input as two call
signs and a grid or signal report.
def unpack(self, a72):
a = [ ]
for i in range(0, 72, 6):
x = a72[i:i+6]
y = (x[0] * 32 +
x[1] * 16 +
x[2] * 8 +
x[3] * 4 +
x[4] * 2 +
x[5] * 1)
a.append(y)
nc1 = 0
nc1 |= a[4] >> 2
nc1 |= a[3] << 4
nc1 |= a[2] << 10
nc1 |= a[1] << 16
nc1 |= a[0] << 22
nc2 = 0
nc2 |= (a[4] & 3) << 26
nc2 |= a[5] << 20
nc2 |= a[6] << 14
nc2 |= a[7] << 8
nc2 |= a[8] << 2
nc2 |= a[9] >> 4
ng = 0
ng |= (a[9] & 15) << 12
ng |= a[10] << 6
ng |= a[11]
if ng >= 32768:
txt = self.unpacktext(nc1, nc2, ng)
return txt
NBASE = 37*36*10*27*27*27
if nc1 == NBASE+1:
c2 = self.unpackcall(nc2)
grid = self.unpackgrid(ng)
return "CQ %s %s" % (c2, grid)
if nc1 >= 267649090 and nc1 <= 267698374:
n = nc1 - 267649090
sf = self.charn(n % 37)
n /= 37
sf = self.charn(n % 37) + sf
n /= 37
sf = self.charn(n % 37) + sf
n /= 37
c2 = self.unpackcall(nc2)
grid = self.unpackgrid(ng)
return "CQ %s/%s %s" % (c2, sf, grid)
c1 = self.unpackcall(nc1)
if c1 == "CQ9DX ":
c1 = "CQ DX "
m = re.match(r'^ *E9([A-Z][A-Z]) *$', c1)
if m != None:
c1 = "CQ " + m.group(1)
c2 = self.unpackcall(nc2)
grid = self.unpackgrid(ng)
msg = "%s %s %s" % (c1, c2, grid)
if "000AAA" in msg:
return None
return msg
def charn(self, c):
if c >= 0 and c <= 9:
return chr(ord('0') + c)
if c >= 10 and c < 36:
return chr(ord('A') + c - 10)
if c == 36:
return ' '
return '?'
def unpackcall(self, x):
a = [ 0, 0, 0, 0, 0, 0 ]
a[5] = self.charn((x % 27) + 10)
x = int(x / 27)
a[4] = self.charn((x % 27) + 10)
x = int(x / 27)
a[3] = self.charn((x % 27) + 10)
x = int(x / 27)
a[2] = self.charn(x%10)
x = int(x / 10)
a[1] = self.charn(x % 36)
x = int(x / 36)
a[0] = self.charn(x)
return ''.join(a)
def unpackgrid(self, ng):
NGBASE = 180*180
if ng == NGBASE+1:
return " "
if ng >= NGBASE+1 and ng < NGBASE+31:
return " -%02d" % (ng - (NGBASE+1))
if ng >= NGBASE+31 and ng < NGBASE+62:
return "R-%02d" % (ng - (NGBASE+31))
if ng == NGBASE+62:
return "RO "
if ng == NGBASE+63:
return "RRR "
if ng == NGBASE+64:
return "73 "
lat = (ng % 180) - 90
ng = int(ng / 180)
lng = (ng * 2) - 180
g = "%c%c%c%c" % (ord('A') + int((179-lng)/20),
ord('A') + int((lat+90)/10),
ord('0') + int(((179-lng)%20)/2),
ord('0') + (lat+90)%10)
if g[0:2] == "KA":
sig = int(g[2:4]) - 50
return "+%02d" % (sig)
if g[0:2] == "LA":
sig = int(g[2:4]) - 50
return "R+%02d" % (sig)
return g
def unpacktext(self, nc1, nc2, nc3):
c = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ +-./?"
nc3 &= 32767
if (nc1 & 1) != 0:
nc3 += 32768
nc1 >>= 1
if (nc2 & 1) != 0:
nc3 += 65536
nc2 >>= 1
msg = [""] * 22
for i in range(4, -1, -1):
j = nc1 % 42
msg[i] = c[j]
nc1 = nc1 // 42
for i in range(9, 4, -1):
j = nc2 % 42
msg[i] = c[j]
nc2 = nc2 // 42
for i in range(12, 9, -1):
j = nc3 % 42
msg[i] = c[j]
nc3 = nc3 // 42
return ''.join(msg)
def __init__(self):
self.block = 1920
now = int(time.time())
gm = time.gmtime(now)
self.start_time = now - gm.tm_sec
Now comes the LDPC decoder. The decoder is driven by tables that
describe the parity checks that the codeword must satify.
Each row of Nm describes one parity check. Each number is an index into the codeword (1-origin). The codeword bits mentioned in each row must exclusive-or to zero. There are 87 rows. Nm is a copy of wsjt-x's bpdecode174.f90.
Nm = [
[ 1, 30, 60, 89, 118, 147, 0 ],
[ 2, 31, 61, 90, 119, 147, 0 ],
[ 3, 32, 62, 91, 120, 148, 0 ],
[ 4, 33, 63, 92, 121, 149, 0 ],
[ 2, 34, 64, 93, 122, 150, 0 ],
[ 5, 33, 65, 94, 123, 148, 0 ],
[ 6, 34, 66, 95, 124, 151, 0 ],
[ 7, 35, 67, 96, 120, 152, 0 ],
[ 8, 36, 68, 97, 125, 153, 0 ],
[ 9, 37, 69, 98, 126, 152, 0 ],
[ 10, 38, 70, 99, 127, 154, 0 ],
[ 11, 39, 71, 100, 126, 155, 0 ],
[ 12, 40, 61, 101, 128, 145, 0 ],
[ 10, 33, 60, 95, 128, 156, 0 ],
[ 13, 41, 72, 97, 126, 157, 0 ],
[ 13, 42, 73, 90, 129, 156, 0 ],
[ 14, 39, 74, 99, 130, 158, 0 ],
[ 15, 43, 75, 102, 131, 159, 0 ],
[ 16, 43, 71, 103, 118, 160, 0 ],
[ 17, 44, 76, 98, 130, 156, 0 ],
[ 18, 45, 60, 96, 132, 161, 0 ],
[ 19, 46, 73, 83, 133, 162, 0 ],
[ 12, 38, 77, 102, 134, 163, 0 ],
[ 19, 47, 78, 104, 135, 147, 0 ],
[ 1, 32, 77, 105, 136, 164, 0 ],
[ 20, 48, 73, 106, 123, 163, 0 ],
[ 21, 41, 79, 107, 137, 165, 0 ],
[ 22, 42, 66, 108, 138, 152, 0 ],
[ 18, 42, 80, 109, 139, 154, 0 ],
[ 23, 49, 81, 110, 135, 166, 0 ],
[ 16, 50, 82, 91, 129, 158, 0 ],
[ 3, 48, 63, 107, 124, 167, 0 ],
[ 6, 51, 67, 111, 134, 155, 0 ],
[ 24, 35, 77, 100, 122, 162, 0 ],
[ 20, 45, 76, 112, 140, 157, 0 ],
[ 21, 36, 64, 92, 130, 159, 0 ],
[ 8, 52, 83, 111, 118, 166, 0 ],
[ 21, 53, 84, 113, 138, 168, 0 ],
[ 25, 51, 79, 89, 122, 158, 0 ],
[ 22, 44, 75, 107, 133, 155, 172 ],
[ 9, 54, 84, 90, 141, 169, 0 ],
[ 22, 54, 85, 110, 136, 161, 0 ],
[ 8, 37, 65, 102, 129, 170, 0 ],
[ 19, 39, 85, 114, 139, 150, 0 ],
[ 26, 55, 71, 93, 142, 167, 0 ],
[ 27, 56, 65, 96, 133, 160, 174 ],
[ 28, 31, 86, 100, 117, 171, 0 ],
[ 28, 52, 70, 104, 132, 144, 0 ],
[ 24, 57, 68, 95, 137, 142, 0 ],
[ 7, 30, 72, 110, 143, 151, 0 ],
[ 4, 51, 76, 115, 127, 168, 0 ],
[ 16, 45, 87, 114, 125, 172, 0 ],
[ 15, 30, 86, 115, 123, 150, 0 ],
[ 23, 46, 64, 91, 144, 173, 0 ],
[ 23, 35, 75, 113, 145, 153, 0 ],
[ 14, 41, 87, 108, 117, 149, 170 ],
[ 25, 40, 85, 94, 124, 159, 0 ],
[ 25, 58, 69, 116, 143, 174, 0 ],
[ 29, 43, 61, 116, 132, 162, 0 ],
[ 15, 58, 88, 112, 121, 164, 0 ],
[ 4, 59, 72, 114, 119, 163, 173 ],
[ 27, 47, 86, 98, 134, 153, 0 ],
[ 5, 44, 78, 109, 141, 0, 0 ],
[ 10, 46, 69, 103, 136, 165, 0 ],
[ 9, 50, 59, 93, 128, 164, 0 ],
[ 14, 57, 58, 109, 120, 166, 0 ],
[ 17, 55, 62, 116, 125, 154, 0 ],
[ 3, 54, 70, 101, 140, 170, 0 ],
[ 1, 36, 82, 108, 127, 174, 0 ],
[ 5, 53, 81, 105, 140, 0, 0 ],
[ 29, 53, 67, 99, 142, 173, 0 ],
[ 18, 49, 74, 97, 115, 167, 0 ],
[ 2, 57, 63, 103, 138, 157, 0 ],
[ 26, 38, 79, 112, 135, 171, 0 ],
[ 11, 52, 66, 88, 119, 148, 0 ],
[ 20, 40, 68, 117, 141, 160, 0 ],
[ 11, 48, 81, 89, 146, 169, 0 ],
[ 29, 47, 80, 92, 146, 172, 0 ],
[ 6, 32, 87, 104, 145, 169, 0 ],
[ 27, 34, 74, 106, 131, 165, 0 ],
[ 12, 56, 84, 88, 139, 0, 0 ],
[ 13, 56, 62, 111, 146, 171, 0 ],
[ 26, 37, 80, 105, 144, 151, 0 ],
[ 17, 31, 82, 113, 121, 161, 0 ],
[ 28, 49, 59, 94, 137, 0, 0 ],
[ 7, 55, 83, 101, 131, 168, 0 ],
[ 24, 50, 78, 106, 143, 149, 0 ],
]
Mn is the dual of Nm.
Each row corresponds to a codeword bit.
The numbers indicate which three parity
checks (rows in Nm) refer to the codeword bit.
1-origin.
Mn is a copy of wsjt-x's bpdecode174.f90.
Mn = [ [ 1, 25, 69 ], [ 2, 5, 73 ], [ 3, 32, 68 ], [ 4, 51, 61 ], [ 6, 63, 70 ], [ 7, 33, 79 ], [ 8, 50, 86 ], [ 9, 37, 43 ], [ 10, 41, 65 ], [ 11, 14, 64 ], [ 12, 75, 77 ], [ 13, 23, 81 ], [ 15, 16, 82 ], [ 17, 56, 66 ], [ 18, 53, 60 ], [ 19, 31, 52 ], [ 20, 67, 84 ], [ 21, 29, 72 ], [ 22, 24, 44 ], [ 26, 35, 76 ], [ 27, 36, 38 ], [ 28, 40, 42 ], [ 30, 54, 55 ], [ 34, 49, 87 ], [ 39, 57, 58 ], [ 45, 74, 83 ], [ 46, 62, 80 ], [ 47, 48, 85 ], [ 59, 71, 78 ], [ 1, 50, 53 ], [ 2, 47, 84 ], [ 3, 25, 79 ], [ 4, 6, 14 ], [ 5, 7, 80 ], [ 8, 34, 55 ], [ 9, 36, 69 ], [ 10, 43, 83 ], [ 11, 23, 74 ], [ 12, 17, 44 ], [ 13, 57, 76 ], [ 15, 27, 56 ], [ 16, 28, 29 ], [ 18, 19, 59 ], [ 20, 40, 63 ], [ 21, 35, 52 ], [ 22, 54, 64 ], [ 24, 62, 78 ], [ 26, 32, 77 ], [ 30, 72, 85 ], [ 31, 65, 87 ], [ 33, 39, 51 ], [ 37, 48, 75 ], [ 38, 70, 71 ], [ 41, 42, 68 ], [ 45, 67, 86 ], [ 46, 81, 82 ], [ 49, 66, 73 ], [ 58, 60, 66 ], [ 61, 65, 85 ], [ 1, 14, 21 ], [ 2, 13, 59 ], [ 3, 67, 82 ], [ 4, 32, 73 ], [ 5, 36, 54 ], [ 6, 43, 46 ], [ 7, 28, 75 ], [ 8, 33, 71 ], [ 9, 49, 76 ], [ 10, 58, 64 ], [ 11, 48, 68 ], [ 12, 19, 45 ], [ 15, 50, 61 ], [ 16, 22, 26 ], [ 17, 72, 80 ], [ 18, 40, 55 ], [ 20, 35, 51 ], [ 23, 25, 34 ], [ 24, 63, 87 ], [ 27, 39, 74 ], [ 29, 78, 83 ], [ 30, 70, 77 ], [ 31, 69, 84 ], [ 22, 37, 86 ], [ 38, 41, 81 ], [ 42, 44, 57 ], [ 47, 53, 62 ], [ 52, 56, 79 ], [ 60, 75, 81 ], [ 1, 39, 77 ], [ 2, 16, 41 ], [ 3, 31, 54 ], [ 4, 36, 78 ], [ 5, 45, 65 ], [ 6, 57, 85 ], [ 7, 14, 49 ], [ 8, 21, 46 ], [ 9, 15, 72 ], [ 10, 20, 62 ], [ 11, 17, 71 ], [ 12, 34, 47 ], [ 13, 68, 86 ], [ 18, 23, 43 ], [ 19, 64, 73 ], [ 24, 48, 79 ], [ 25, 70, 83 ], [ 26, 80, 87 ], [ 27, 32, 40 ], [ 28, 56, 69 ], [ 29, 63, 66 ], [ 30, 42, 50 ], [ 33, 37, 82 ], [ 35, 60, 74 ], [ 38, 55, 84 ], [ 44, 52, 61 ], [ 51, 53, 72 ], [ 58, 59, 67 ], [ 47, 56, 76 ], [ 1, 19, 37 ], [ 2, 61, 75 ], [ 3, 8, 66 ], [ 4, 60, 84 ], [ 5, 34, 39 ], [ 6, 26, 53 ], [ 7, 32, 57 ], [ 9, 52, 67 ], [ 10, 12, 15 ], [ 11, 51, 69 ], [ 13, 14, 65 ], [ 16, 31, 43 ], [ 17, 20, 36 ], [ 18, 80, 86 ], [ 21, 48, 59 ], [ 22, 40, 46 ], [ 23, 33, 62 ], [ 24, 30, 74 ], [ 25, 42, 64 ], [ 27, 49, 85 ], [ 28, 38, 73 ], [ 29, 44, 81 ], [ 35, 68, 70 ], [ 41, 63, 76 ], [ 45, 49, 71 ], [ 50, 58, 87 ], [ 48, 54, 83 ], [ 13, 55, 79 ], [ 77, 78, 82 ], [ 1, 2, 24 ], [ 3, 6, 75 ], [ 4, 56, 87 ], [ 5, 44, 53 ], [ 7, 50, 83 ], [ 8, 10, 28 ], [ 9, 55, 62 ], [ 11, 29, 67 ], [ 12, 33, 40 ], [ 14, 16, 20 ], [ 15, 35, 73 ], [ 17, 31, 39 ], [ 18, 36, 57 ], [ 19, 46, 76 ], [ 21, 42, 84 ], [ 22, 34, 59 ], [ 23, 26, 61 ], [ 25, 60, 65 ], [ 27, 64, 80 ], [ 30, 37, 66 ], [ 32, 45, 72 ], [ 38, 51, 86 ], [ 41, 77, 79 ], [ 43, 56, 68 ], [ 47, 74, 82 ], [ 40, 52, 78 ], [ 54, 61, 71 ], [ 46, 58, 69 ], ]This is an indirection table that moves a codeword's 87 systematic (message) bits to the end. It's copied from the wsjt-x source.
colorder = [ 0, 1, 2, 3, 30, 4, 5, 6, 7, 8, 9, 10, 11, 32, 12, 40, 13, 14, 15, 16, 17, 18, 37, 45, 29, 19, 20, 21, 41, 22, 42, 31, 33, 34, 44, 35, 47, 51, 50, 43, 36, 52, 63, 46, 25, 55, 27, 24, 23, 53, 39, 49, 59, 38, 48, 61, 60, 57, 28, 62, 56, 58, 65, 66, 26, 70, 64, 69, 68, 67, 74, 71, 54, 76, 72, 75, 78, 77, 80, 79, 73, 83, 84, 81, 82, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173 ]The LDPC decoder function. Given a 174-bit codeword as an array of log-likelihood of zero, return an 87-bit plain text, or zero-length array. The algorithm is the sum-product algorithm from Sarah Johnson's Iterative Error Correction book.
def ldpc_decode(codeword):
mnx = numpy.array(Mn, dtype=numpy.int32)
nmx = numpy.array(Nm, dtype=numpy.int32)
m = numpy.zeros((87, 174))
for i in range(0, 174):
for j in range(0, 87):
m[j][i] = codeword[i]
for iter in range(0, 30):
e = numpy.zeros((87, 174))
for i in range(0, 7):
a = numpy.ones(87)
for ii in range(0, 7):
if ii != i:
x1 = numpy.tanh(m[range(0, 87), nmx[:,ii]-1] / 2.0)
x2 = numpy.where(numpy.greater(nmx[:,ii], 0.0), x1, 1.0)
a = a * x2
b = numpy.where(numpy.less(a, 0.99999), a, 0.99)
c = numpy.log((b + 1.0) / (1.0 - b))
d = numpy.where(numpy.equal(nmx[:,i], 0),
e[range(0,87), nmx[:,i]-1],
c)
e[range(0,87), nmx[:,i]-1] = d
e0 = e[mnx[:,0]-1, range(0,174)]
e1 = e[mnx[:,1]-1, range(0,174)]
e2 = e[mnx[:,2]-1, range(0,174)]
ll = codeword + e0 + e1 + e2
cw = numpy.select( [ ll < 0 ], [ numpy.ones(174, dtype=numpy.int32) ])
if ldpc_check(cw):
decoded = cw[colorder]
decoded = decoded[-87:]
return decoded
for j in range(0, 3):
ll = codeword
if j != 0:
e0 = e[mnx[:,0]-1, range(0,174)]
ll = ll + e0
if j != 1:
e1 = e[mnx[:,1]-1, range(0,174)]
ll = ll + e1
if j != 2:
e2 = e[mnx[:,2]-1, range(0,174)]
ll = ll + e2
m[mnx[:,j]-1, range(0,174)] = ll
return numpy.array([])
A helper function to decide if
a 174-bit codeword passes the LDPC parity checks.
def ldpc_check(codeword):
for e in Nm:
x = 0
for i in e:
if i != 0:
x ^= codeword[i-1]
if x != 0:
return False
return True
The CRC-12 polynomial, copied from wsjt-x's 0xc06.
crc12poly = [ 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0 ]crc() is a copy of Evan Sneath's code, from https://gist.github.com/evansneath/4650991 . div is crc12poly.
def crc(msg, div):
code = numpy.zeros(len(div)-1, dtype=numpy.int32)
assert len(code) == len(div) - 1
msg = numpy.append(msg, code)
div = numpy.array(div, dtype=numpy.int32)
divlen = len(div)
for i in range(len(msg)-len(code)):
if msg[i] == 1:
msg[i:i+divlen] = numpy.mod(msg[i:i+divlen] + div, 2)
return msg[-len(code):]
The main function: look at the command-line arguments, decide
whether to read from a sound card or from .wav files.
def main():
if len(sys.argv) == 1:
r = FT8()
r.opencard()
r.gocard()
sys.exit(0)
i = 1
while i < len(sys.argv):
r = FT8()
r.gowav(sys.argv[i], 0)
i += 1
if __name__ == '__main__':
main()
